HG10 and HGF10 Series

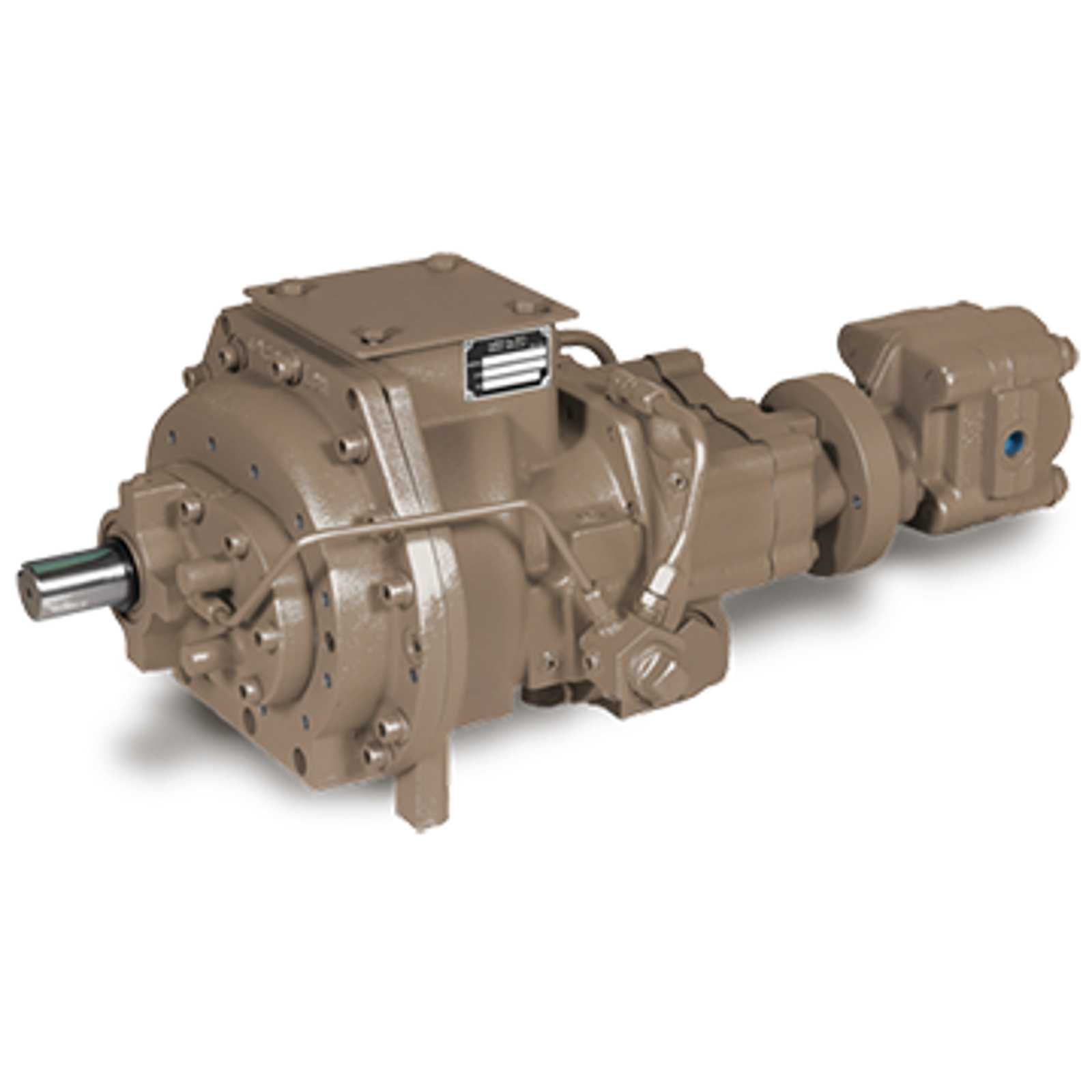

Models HG10000 and HGF10000 Non-Geared

BENEFITS

Rotary Screw Compressors are very cost-effective for handling high volumes of gas in field gathering, vapor recovery, and other applications. The HG10 and HGF10 Series are suitable for applications to 90 BHP and 350 PSIG discharge pressure.



Low maintenance and high reliability are inherent with rotary screws because they have few moving parts. There are no valves, rings or packing to wear out or cause loss of efficiency.



Smooth operation results from no unbalanced forces and no pressure pulsation. No foundation is required and there are no piping vibrations from pressure pulsation.



Natural gas engine or electric motor drives are equally acceptable
with rotary screws.



LeROI Rotary Screw Gas Compressors are available in 13 models
covering a flow range of 20 to 15,000 MSCFD and horsepower
from 10 to 800.



FEATURES

The HG10 can be belt driven or direct coupled to electric motors for maximum flexibility at minimum cost. The compressor shaft bearings can absorb the belt side load without additional pillow block bearing supports up to 30 HP. The HGF10000 is suitable for direct coupling to engines and electric motors.



Single-Stage operation from 20 PSIG inlet to 350 PSIG maximum is possible with the HG10 and HGF10 Series oil-flooded compressors. Compressor packages are therefore simple, reliable and inexpensive.



The gas differential pressure provides oil circulation for proper lubrication at differential pressures over 70 PSI. An auxiliary oil pump is required on applications below 70 PSI differential pressure.



Discharge porting can be selected to match the internal compression to the application requirement for maximum compression efficiency.



All iron or steel construction with no copper or copper alloys
makes these compressors compatible with natural gas, sweet
or sour.



PERFORMANCE

  • Brake HP
    • 90 Max.
  • Flow Range (MSCFD)
    • 500 Max.
  • Inlet Pressure
    • 20" Hg Vac. Min.*
    • 50 PSIG Max.
  • Discharge Pressure
    • 50-350 PSIG



  • Speed Range
    • HG10000
      • 2,650 RPM Min.
      • 5,400 RPM Max.
    • HGF10000
      • 1,770 RPM Min.
      • 3,600 RPM Max.



*Consult Factory for use with low vacuum inlet or discharge pressures.







HG10 and HGF10

Download Literature

Customer Service +1.937.498.2555



OPTIONS AND SPECIFICATIONS

TECHNICAL SPECIFICATIONS

  • Models HG10000 and HGF10000
  • Rotor Dia. 108 mm (4.25 inches)
  • Rotor L/D 1.65
  • Rotor Description:
    • Twin Screw SRM Profile with Sealing Strips, 4 Lobe Male,
      6 Lobe Female
  • Shaft Seal(s) – Mechanical*
  • Drive System:
    • HG10000 is suitable for direct coupling to electric motors or V-Belt Drive - oversized input shaft bearings for belt side load up to 30 HP.
    • Rotation – Facing Shaft – CCLW
    • Drive Shaft 1.44” Dia. with 3/8” Square KeyInternal Helical Speed Increasing Gears (AGMA 11)
  • HGF10000 is CLW rotation suitable for direct coupling to
    engines or electric motors.
    • Drive Shaft 1.44” with 3/8” Square Key
  • Materials:
    • Rotors – Ductile Iron 80-55-06
    • Castings – Cast Iron G3000
    • Bearings – Roller bearings on the inlet end and tapered roller bearings on the discharge end – alloy steel races, rolling elements and cages.
  • Weight 250 Pounds

placeholder

OPTIONS

  • Versatrol
  • Fan Shaft:
    • A fan shaft is available for use with a direct mounted fan
      (side load is not acceptable so cannot be used for belt drive).
  • Internal Volume Ratio:
    • Three volume ratios are available for matching compressor
      performance to pressure conditions.
    • High Ratio – 4.4
    • Medium Ratio – 3.0
    • Low Ratio – 1.9
  • Oil Pump:
    • Integral oil pump is available for low-pressure differential
      applications, with or without fan shaft.
  • SAE # 3 Bell Housing:

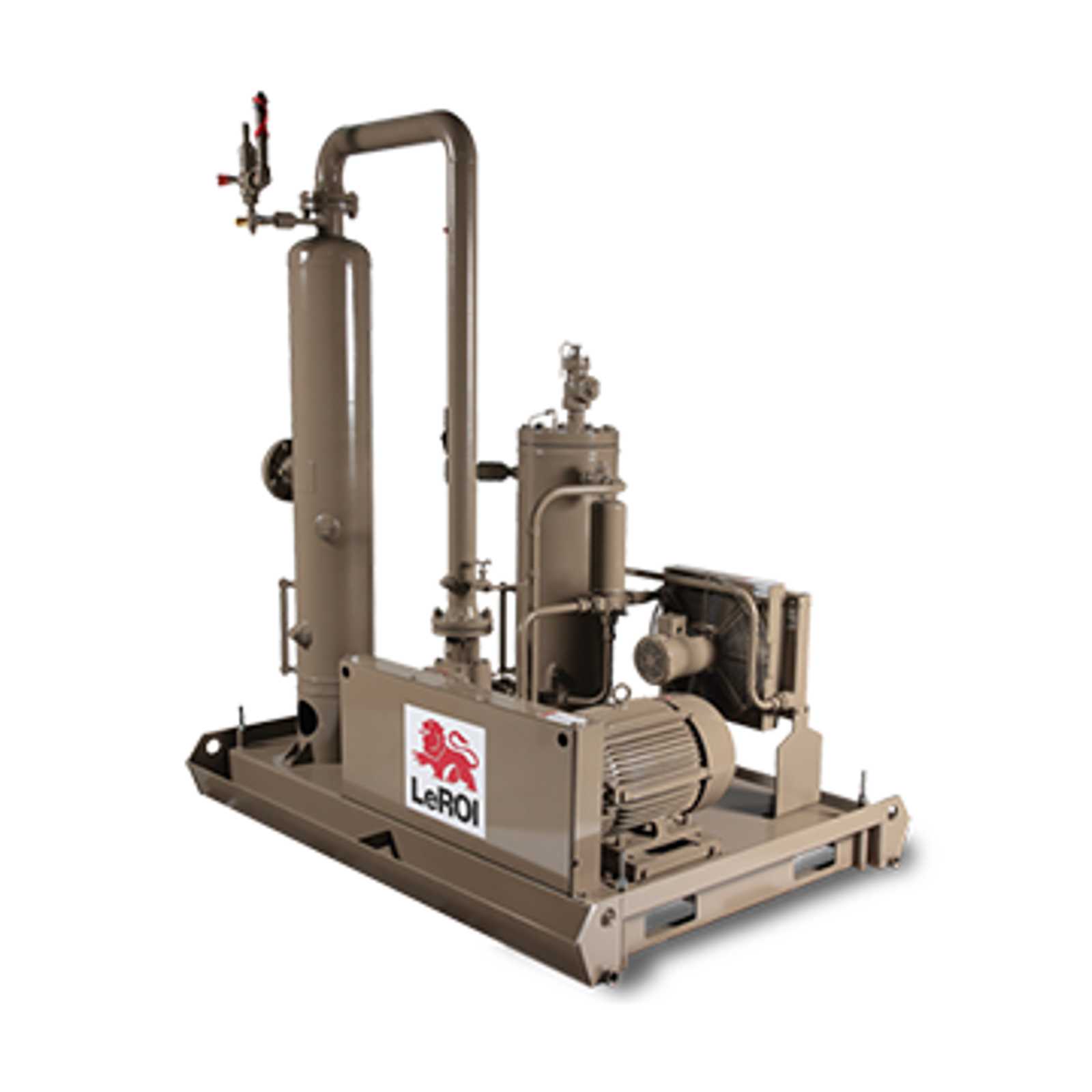

    • Modules with oil cooler, aftercooler, gas/oil reservoir assembly,
      thermal valve, fan, oil filter assembly, minimum pressure valve
      and sight glass are all mounted on a steel subbase with
      connected components. Drive motor, belts, pulleys, guard
      and electric motor driven cooling fan are also available.



APPLICATIONS

  • Gas Gathering
  • Well Head Gas Compression
  • Fuel Gas Boosting
  • Vapor Recovery
  • Inert Gas Boosting
  • Landfill Gas
